Product Summary

The IR2136S is a high votage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology of the IR2136S enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor.

Parametrics

IR2136S absolute maximum ratings: (1)VS, High side offset voltage: VB1,2,3 - 25V to VB1,2,3 + 0.3V; (2)VBS, High side floating supply voltage: -0.3V to 625V; (3)VHO, High side floating output voltage: VS1,2,3 - 0.3V to VB1,2,3 + 0.3V; (4)VCC, Low side and logic fixed supply voltage: -0.3V to 25V; (5)VSS, Logic ground: VCC - 25V to VCC + 0.3V; (6)VLO1,2,3 Low side output voltage: -0.3V to VCC + 0.3V; (7)VIN, Input voltage LIN,HIN,ITRIP, EN, RCIN: VSS - 0.3V to lower of (VSS + 15V) or VCC + 0.3V).

Features

IR2136S features: (1)Floating channel designed for bootstrap operation Fully operational to +600V, Tolerant to negative transient voltage - dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout for all channels; (4)Over-current shutdown turns off all six drivers; (5)Independent 3 half-bridge drivers; (6)Matched propagation delay for all channels; (7)Cross-conduction prevention logic; (8)Lowside outputs out of phase with inputs. High side outputs out of phase.

Diagrams

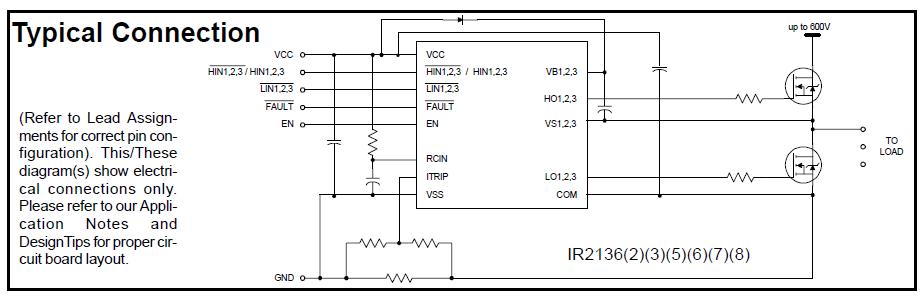

IR2136S block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IR2136S
IR2136S

IC DRIVER BRIDGE 3-PHASE 28-SOIC
Data Sheet
Negotiable
IR2136SPBF
IR2136SPBF
International Rectifier
Power Driver ICs
Data Sheet
0-1: $3.97
1-25: $2.72
25-100: $2.30
100-250: $2.21
IR2136STRPBF
IR2136STRPBF
International Rectifier
Power Driver ICs 3Phs Drvr Sft Trn On Invrt 200ns
Data Sheet
0-1: $3.97
1-25: $2.72
25-100: $2.30
100-250: $2.21
IR2136STR
IR2136STR

IC DRIVER 3PHASE 600V 28-SOIC
Data Sheet
Negotiable
