Product Summary
The ATMEGA8L-8MU is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 300.0mA.
Features
Features: (1)High-performance, Low-power Atmel AVR 8-bit Microcontroller; (2)Fully Static Operation; (3)Up to 16 MIPS Throughput at 16MHz; (4)On-chip 2-cycle Multiplier; (5)8Kbytes of In-System Self-programmable Flash program memory; (6)512Bytes EEPROM; (7)1Kbyte Internal SRAM; (8)Programming Lock for Software Security; (9)Real Time Counter with Separate Oscillator; (10)Three PWM Channels; (11)8-channel ADC in TQFP and QFN/MLF package; (12)Six Channels 10-bit Accuracy; (13)Power-on Reset and Programmable Brown-out Detection; (14)Internal Calibrated RC Oscillator; (15)External and Internal Interrupt Sources; (16)I/O and Packages: 23 Programmable I/O Lines, 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF; (17)Operating Voltages: 2.7V - 5.5V (ATmega8L); (18)Speed Grades: 0 to 8MHz (ATmega8L); (19)Power Consumption at 4Mhz, 3V, 25℃.

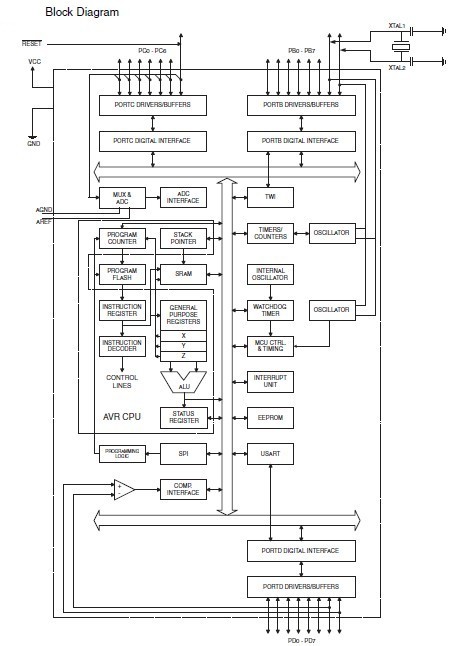

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATmega8L-8MU |
Atmel |
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 23 I/O Pins |
Data Sheet |
|
|
||||||||
 |
ATMEGA8L-8MUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-8MHz |
Data Sheet |
|
|
||||||||
