Product Summary

The FT232RL-REEL is a USB to serial UART interface. The FT232RL-REEL is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID (TID) 40680004 (Rev B) and 40770018 (Rev C).

Parametrics

FT232RL-REEL absolute maximum ratings: (1)Storage Temperature: -65℃ to 150℃; (2)Floor Life (Out of Bag) At Factory Ambient(30℃ / 60% Relative Humidity): 168 Hours(IPC/JEDEC J-STD-033A MSL Level 3 Compliant); (3)Ambient Temperature (Power Applied): -40℃ to 85℃; (4)MTTF FT232RL: 11162037; (5)MTTF FT232RQ: 4464815; (6)VCC Supply Voltage: -0.5 V to +6.00 V; (7)DC Input Voltage–USBDP and USBDM: -0.5 V to +3.8 V; (8)DC Input Voltage–High Impedance Bidirectionals: -0.5 V to + (VCC +0.5) V; (9)DC Input Voltage–All Other Inputs: -0.5 V to + (VCC +0.5) V; (10)DC Output Current–Outputs: 24 mA; (11)DC Output Current–Low Impedance Bidirectionals: 24 mA; (12)Power Dissipation (VCC = 5.25V): 500 mW.

Features

FT232RL-REEL features: (1)Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on the chip. No USB specific firmware programming required.; (2)Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.; (3)Fully integrated USB termination resistors.; (4)Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA. ; (5)Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232 ) at TTL levels.; (6)128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.

Diagrams

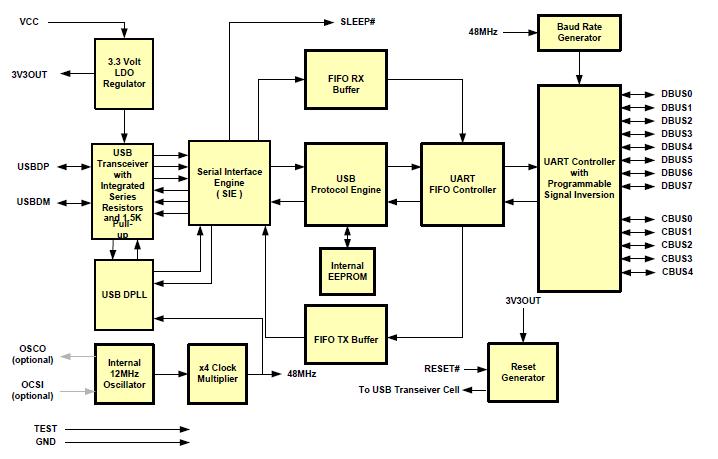

FT232RL-REEL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FT232RL-REEL
FT232RL-REEL
FTDI
USB Interface IC USB to Serial UART Enhanced IC SSOP-28
Data Sheet
0-1: $2.70
1-10: $2.43
10-50: $2.31
50-100: $2.19
