Product Summary
The ATF1508AS-10AU100 is one member of the ATF1508AS family which is designed as the high-performance, high-density complex programmable logic device (CPLD). Also this device has up to 96 bi-directional I/O pins and four dedicated input pins, depending on the type of device package selected; and each of the 128 macrocells generates a buried feedback that goes to the global bus.
Parametrics
Absolute maximum ratings: (1)temperature under bias: -40℃ to +85℃; (2)storage temperature: -65℃ to +150℃; (3)voltage on any pin with respect to ground during programming: -2v to +14v; (4)programming voltage with respected to ground: -2v to 14v.
Features
Features:(1)5 Product Terms per Macrocell, Expandable up to 40 per Macrocell; (2)84, 100, 160 Pins ; (3)7.5 ns Maximum Pin-to-pin Delay; (4)D/T/Latch Configured Flip-flops; (5)Global and Individual Register Control Signals; (6)Maximum Logic Utilization by Burying a Register within a COM Output; (7)Available in Commercial and Industrial Temperature Ranges; (8)Available in 84-lead PLCC, 100-lead PQFP, 100-lead TQFP and 160-lead PQFP Packages; (9)JTAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported ; (10)Fast In-System Programmability (ISP) via JTAG ; (11)PCI-compliant; (12)3.3 or 5.0V I/O Pins; (13)Security Fuse Feature; (14)Green (Pb/Halide-free/RoHS Compliant) Package Options.

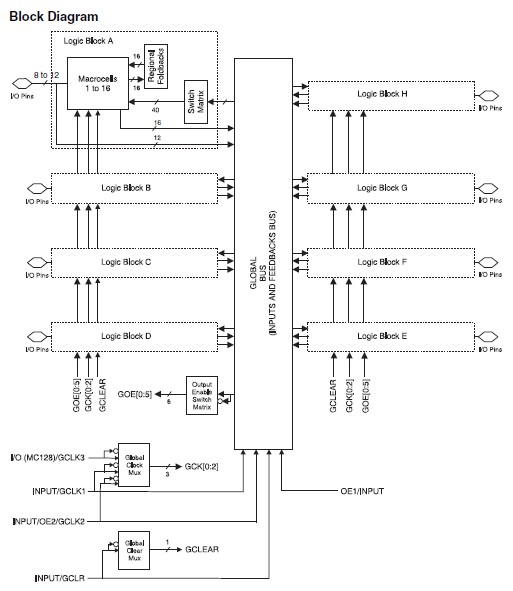

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF1508AS-10AU100 |
Atmel |
CPLD - Complex Programmable Logic Devices 128 MC CPLD 5 V ISP CPLD 100 PIN 10NS |
Data Sheet |
|
|
||||||||||||
