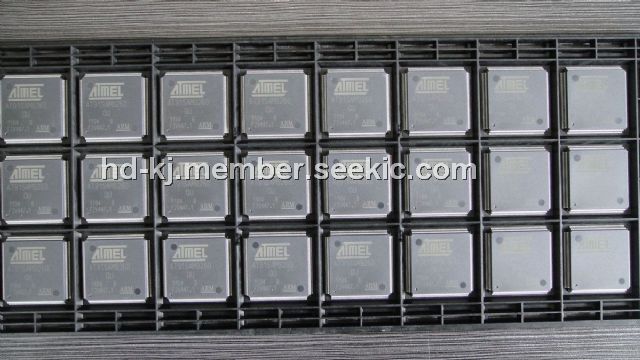

AT91SAM9260B-QU

AT91, ARM, thumb microcontrollers

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~8.00

PartNumber:: AT91SAM9260B-QU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Katherina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:AT91SAM9260B-QU
US $6.00 - 8.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

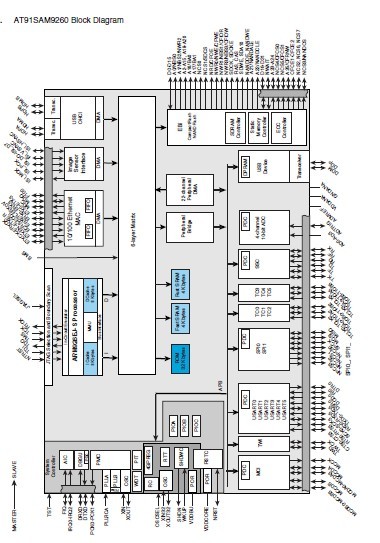

The AT91SAM9260B-QU is one member of the AT91SAM9260 series.The AT91SAM9260B-QU is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals.The AT91SAM9260B-QU embeds an Ethernet MAC, one USB Device Port, and a USB Host controller.It also integrates several standard peripherals, such as the USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and MultiMedia Card Interface.

Parametrics

Absolute maximum ratings: (1)Operating Temperature (Industrial): -40℃ to +85℃; (2)Storage Temperature: -60℃ to +150℃; (3)Voltage on Input Pins with Respect to Ground: -0.3V to VDDIO+0.3V(+4V max); (4)Maximum Operating Voltage (VDDCORE, VDDPLL and VDDBU): 2.0V; (5)Maximum Operating Voltage (VDDIOM and VDDIOP): 4.0V; (6)Total DC Output Current on all I/O lines: 350mA.

Features

Features: (1)32-bit External bus interface supporting 4-bank SDRAM/LPSDR, static memories,compactflash, SLC NAND flash with ECC; (2)two 4-kbyte internal SRAM, single-cycle access at system speed; (3)one 32-kbyte internal ROM, embedding bootstrap routine; (4)reset controller with on-chip power-on reset; (5)selectable 32,768 Hz low-power and 3-20 MHz main oscillator; (6)internal low-power 32 kHz RC oscillator; (7)one PLL for the system and one PLL optimized for USB; (8)two programmable external clock signals; (9)advanced interrupt controller and debug unit; (10)periodic interval timer, watchdog timer and real time timer.
