Product Summary

The OV05642-A63A is a worlds first 1/4-inch, 5 megapixel SOC CameraChip sensor featuring OmniVisions most advanced 1.4 micron OmniBSI backside illumination architecture and TrueFocus ISP. The OV05642-A63A provides the full functionality of a complete camera on a single chip, including anti-shake technology, auto focus control, MIPI and high definition support (720p and 1080p). The OV05642-A63A delivers best-in-class streaming video and photography for camera phone applications, creating the ultimate imaging experience.

Parametrics

OV05642-A63A absolute maximum ratings: (1)power supply: core: 1.5VDC ± 5% (internal regulator), analog: 2.6 ~ 3.0V I/O: 1.7 ~ 3.0V; (2)temperature range: operational: -30℃ to 70℃, optimal: 0 to 50℃.


Features

OV05642-A63A features: (1)1.4 micron OmniBSI technology; (2)ultra high performance; (3)embedded TrueFocus™ ISP, enabling better denoise, sharpening, gamma correction and color correction; (4)automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance detection, automatic black level calibration (ABLC); (5)programmable controls for frame rate, AEC/AGC 16-zone size/ position/weight control, mirror and flip, scaling, cropping, windowing, and panning; (6)image quality controls: color saturation, hue, gamma, sharpness, lens correction, defective pixel cancelling, and noise cancelling; (7)support for output formats: RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression; (8)support for auto focus control (AFC); (9)standard serial SCCB interface; (10)MIPI serial input/output interface; (11)programmable I/O drive capability; (12)support for mechanical shutter, ND filter and IRIS control; (13)built-in 1.5V regulator for core.

Diagrams

OV05642-A63A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OV05642-A63A
OV05642-A63A

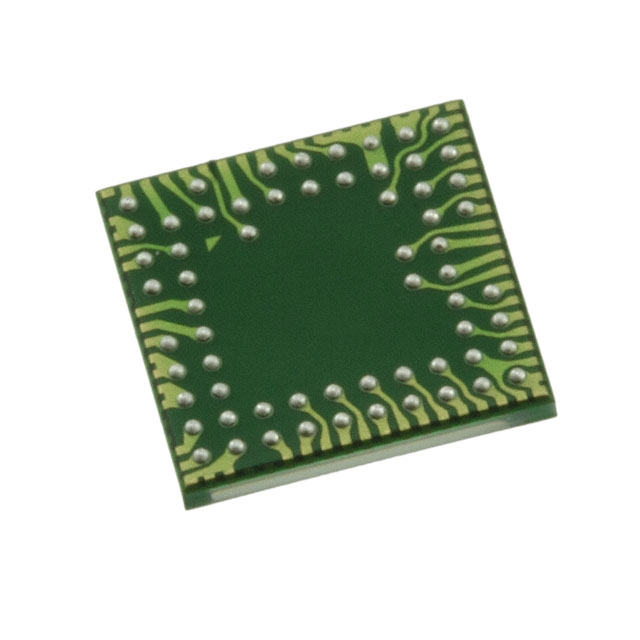

SENSOR IMAGE SOC 5MP 63CSP3
Data Sheet
0-1: $10.15
1-10: $8.28
10-25: $7.66
25-50: $7.45
50-100: $6.42
100-250: $6.21
250-500: $6.00
500-1000: $5.69
1000-2500: $5.51
