Product Summary
The ATTINY24A-SSU is low-power CMOS 8-bit microcontrollers based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY24A-SSU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 200.0mA.
Features
Features: (1)High Performance, Low Power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance, Non-volatile Memory Segments; (4)One 8-bit and One 16-bit Timer/Counter with Two PWM Channels, Each; (5)10-bit ADC; (6)Programmable Watchdog Timer with Separate On-chip Oscillator; (7)On-chip Analog Comparator; (8)Universal Serial Interface; (9)I/O and Packages: Available in 20-pin QFN/MLF/VQFN, 14-pin SOIC, 14-pin PDIP and 15-ball UFBGA, Twelve Programmable I/O Lines; (10)Operating Voltage: 1.8 to 5.5V; (11)Speed Grade: 0 to 4 MHz at 1.8 to 5.5V, 0 to 10 MHz at 2.7 to 5.5V, 0 to 20 MHz at 4.5 to 5.5V; (12)Industrial Temperature Range: -40℃ to +85℃; (13)Low Power Consumption.

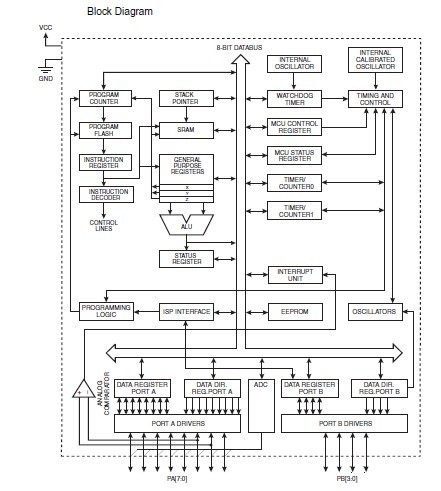

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATTINY24A-SSU |
Atmel |
8-bit Microcontrollers (MCU) 20MHz, Ind Temp 1.8-5.5V, Green |
Data Sheet |
|
|
||||||||||||
 |
ATTINY24A-SSUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 2KB FLSH 128B EE USI ADC 20MHz 1.8V |
Data Sheet |
|
|
||||||||||||
 |
ATTINY24A-SSU-SL383 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
