AT91SAM9G20B-CU

Product Summary

The AT91SAM9G20B-CU is a kind of ARM thumb microcontroller. The AT91SAM9G20B-CU is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals. The AT91SAM9G20B-CU embeds an Ethernet MAC, one USB Device Port, and a USB Host controller. It also integrates several standard peripherals, such as the USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and MultiMedia Card Interface. The AT91SAM9G20B-CU is an enhancement of the AT91SAM9260 with the same peripheral features. It is pin-to-pin compatible with the exception of power supply pins. Speed is increased to reach 400 MHz on the ARM core and 133 MHz on the system bus and EBI.

Parametrics

AT91SAM9G20B-CU absolute maximum ratings: (1)Operating Temperature (Industrial): -40℃ to + 85℃; (2)Junction Temperature: +125℃; (3)Storage Temperature: -40℃ to + 150℃; (4)Voltage on Input Pins with Respect to Ground: -0.3V to VDDIO+0.3V (+4V max); (5)Maximum Operating Voltage (VDDCORE, VDDPLL and VDDBU): 1.2V; (6)Maximum Operating Voltage (VDDIOM and VDDIOP): 4.0V; (7)Total DC Output Current on all I/O lines: 350 mA.

Features

AT91SAM9G20B-CU features: (1)Incorporates the ARM926EJ-SARM Thumb Processor; (2)Additional Embedded Memories; (3)External Bus Interface (EBI); (4)USB 2.0 Full Speed (12 Mbits per second) Device Port; (5)USB 2.0 Full Speed (12 Mbits per second) Host and Dual Port; (6)Ethernet MAC 10/100 Base T; (7)Image Sensor Interface; (8)Bus Matrix; (9)Fully-featured System Controller; (10)Reset Controller (RSTC); (11)Clock Generator (CKGR); (12)Power Management Controller (PMC); (13)Advanced Interrupt Controller (AIC); (14)Debug Unit (DBGU); (15)Periodic Interval Timer (PIT); (16)Watchdog Timer (WDT); (17)Real-time Timer (RTT); (18)One 4-channel 10-bit Analog-to-Digital Converter; (19)Three 32-bit Parallel Input/Output Controllers (PIOA, PIOB, PIOC); (20)Peripheral DMA Controller Channels (PDC); (21)One Two-slot MultiMedia Card Interface (MCI).

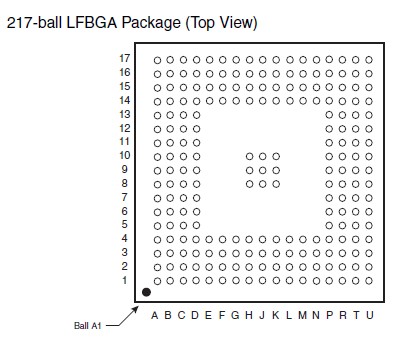

Diagrams
