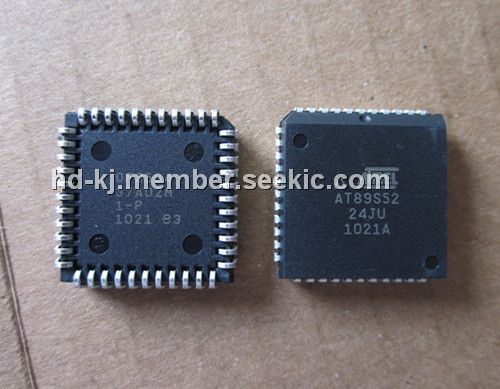

AT89S52-24JU

8-bit Microcontroller, Pb, Halide-free, 4.0V to 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.20

PartNumber:: AT89S52-24JU

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Katherina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:AT89S52-24JU
US $1.05 - 1.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89S52-24JU is designed as one kind of low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory that belongs to the AT89S52 family. This device has a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, so it is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications. Also it is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes.

Parametrics

Absolute maximum ratings:(1)Operating Temperature: -55℃ to +125℃;(2)Storage Temperature: -65℃ to +150℃;(3)Voltage on Any Pin with Respect to Ground: -1.0 V to +7.0 V;(4)Maximum Operating Voltage: 6.6 V;(5)DC Output Current: 15.0 mA.

Features

Features:(1)compatible with MCS-51 products; (2)8K bytes of in-system programmable (ISP) flash memory endurance: 1000 write/erase cycles; (3)4.0V to 5.5V operating range; (4)fully static operation: 0 Hz to 33 MHz; (5)three-level program memory lock; (6)256 x 8-bit internal RAM; (7)32 programmable I/O lines; (8)three 16-bit timer/counters; (9)eight interrupt sources; (10)full duplex UART serial channel; (11)low-power idle and power-down modes; (12)interrupt recovery from power-down mode; (13)watchdog timer; (14)dual data pointer; (15)power-off flag; (16)fast programming time; (17)flexible ISP programming (byte and page mode); (18)green (Pb/halide-free) packaging option.
